Eaves Beam



3D PDF



General Information

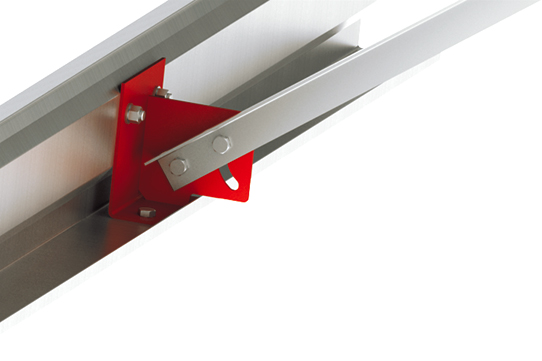

Eaves Strut Cleats are an Eaves Beam anti sag component used in conjunction with Eaves Struts and Eaves Strut to Purlin Cleats to provide anti sag support to Eaves Beams at various points along the span. A drawing of this component is shown below.

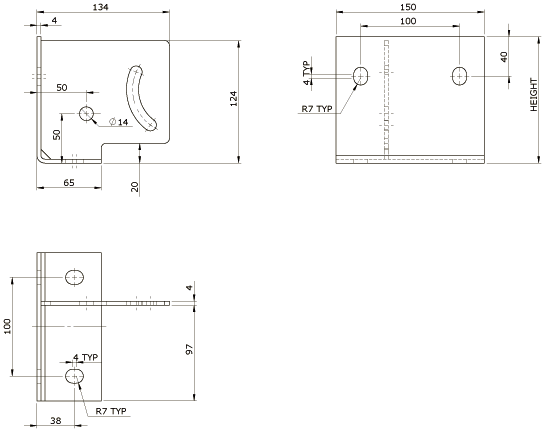

Eaves Strut cleats diagram

There is a version of this cleat for each section depth of Eaves Beam and it may be supplied to match either galvanised or prepainted steel. For information on the application of this component please refer to the section Eaves Beam Anti Sag.
How to order

The product codes along with a drawing and CAD file are included in the table below. The code and quantity required are needed when ordering.
ProSigma+ Eaves Strut Cleat product codes and drawings:

Code: Description: PDF File
DP-EBS-CLEAT180 Eaves Strut Cleat to suit 180 Eaves Beam: PDF File
DP-EBS-CLEAT210 Eaves Strut Cleat to suit 210 Eaves Beam:
DP-PEBS-CLEAT180 Eaves Strut Cleat to suit 180 Eaves Beam (Prepainted):
DP-PEBS-CLEAT210 Eaves Strut Cleat to suit 210 Eaves Beam (Prepainted):
