Bevel Gutters

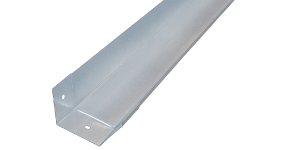

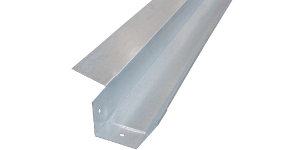

	Bevel Gutter 4.876 m (16′) Drawings 100mm Bevel Gutter 150mm Bevel Gutter
	Bevel Gutter 4.876 m (16′) 15° Self/Hang Drawings 100mm Self Hanging Bevel Gutter 150mm Self Hunging Bevel Gutter

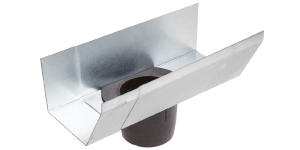

	Bevel Mid Drop with 75 mm Outlet Bevel Mid Drop with 100 mm Outlet

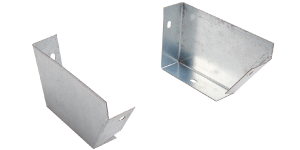

	Bevel Stopend L/Hand Bevel Stopend R/Hand

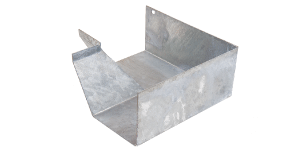

	Bevel Angle Internal

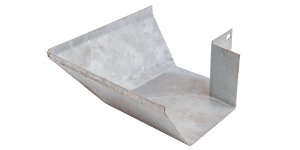

	Bevel Angle External

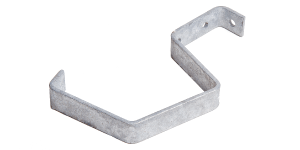

	Detail Drawing	A100 (4″ Bevel Gutter bracket, 75 mm Leg x 13°)

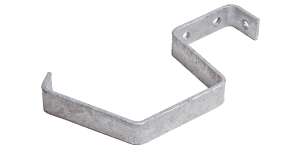

	Detail Drawing	B100 (4″ Bevel Gutter bracket, 75 mm Leg x 90°)

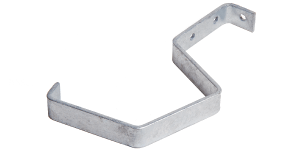

	Detail Drawing	C100 (4″ Bevel Gutter bracket, 100 mm Leg x 13°)

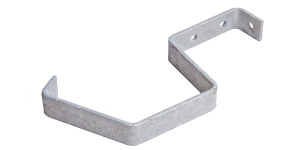

	Detail Drawing	D100 (4″ Bevel Gutter bracket, 100 mm Leg x 90°)

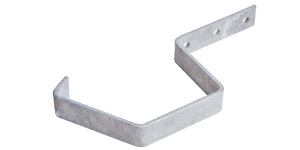

	Detail Drawing	E100 (4″ Bevel Gutter bracket, 130 mm Leg x 90°)
	Detail Drawing	E150 (6″ Bevel Gutter bracket, 125 mm Leg x 90°)

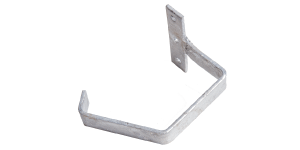

	Detail Drawing	F100 (4″ Bevel Gutter Facia mounting bracket)

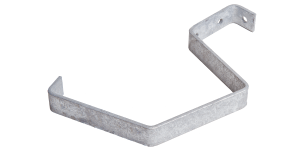

	Detail Drawing	A150 (6″ Bevel Gutter bracket, 75 mm Leg x 13°)

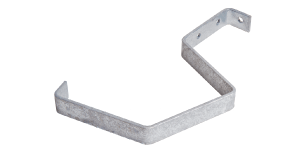

	Detail Drawing	C150 (6″ Bevel Gutter bracket, 100 mm Leg x 13°)
	Detail Drawing	D150 (6″ Bevel Gutter bracket, 100 mm Leg x 90°)

Box Gutters

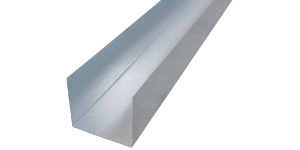

	Box Gutter 4.876 m (16′) Drawing

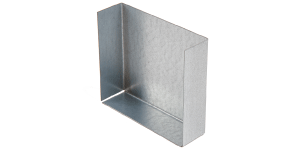

	Box Stop End

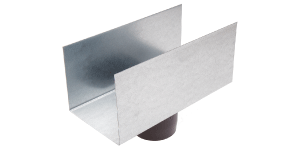

	Bevel Mid Drop with 75 mm Outlet Bevel Mid Drop with 100 mm Outlet

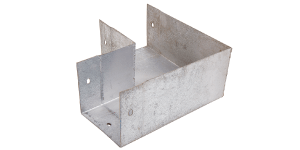

	90° Box Angle

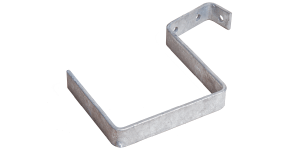

	Detail Drawing	G150 Sq Box Gutter bracket 75×13°

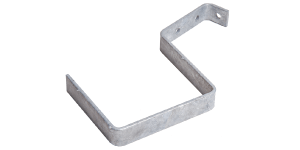

	Detail Drawing	H150 Sq Box Gutter bracket 100×13°

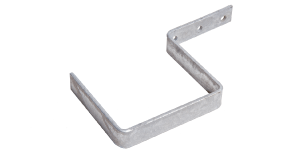

	Detail Drawing	I150 Sq Box Gutter bracket 100×90

Half Round Gutters

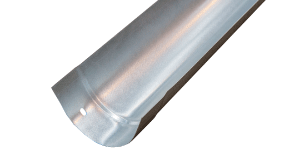

	Half Round Gutter 5″ x 6’ Half Round Gutter 6″ x 6’

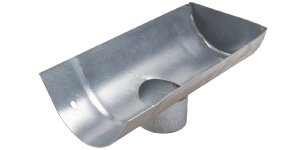

	5″ HR Drop End with 3″ Outlet 6″ HR Drop End with 3″ Outlet

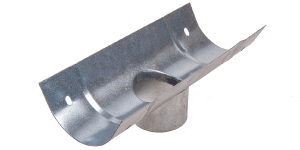

	5″ Half Round Mid Drop with 3″ Outlet 6″ Half Round Mid Drop with 3″ Outlet

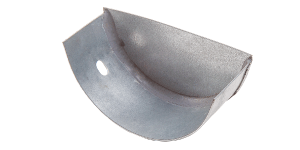

	5″ Half Round Stop End 6″ Half Round Stop End
	Half Round Fascia Bracket 5″ Half Round Fascia Bracket 6″

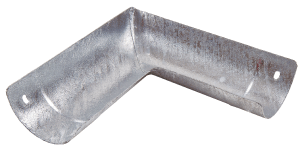

	Half Round Angle Bend 5″ Half Round Angle Bend 6″
	Half Round Drive Bracket 5″ Half Round Drive Bracket 6″

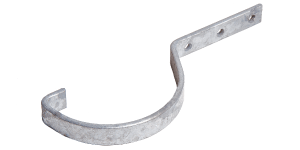

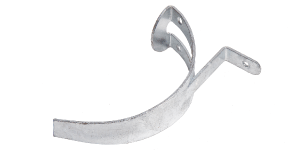

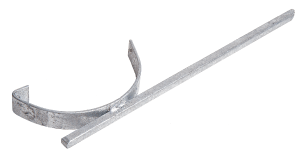

	Half Round Gutter Bracket 5″ Half Round Gutter Bracket 6″

Downpipes

	75 mm Swanecks with 225 mm offset 75 mm Swanecks with 300 mm offset 100 mm Swanecks with 225 mm offset 100 mm Swanecks with 300 mm offset

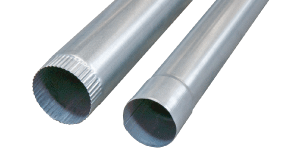

	75 mm x 3 m Down Pipe 75 mm x 2 m Down Pipe 100 mm x 3 m Down Pipe 100 mm x 2 m Down Pipe

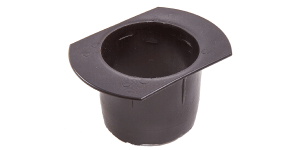

	75 mm plastic Outlet 100 mm plastic Outlet

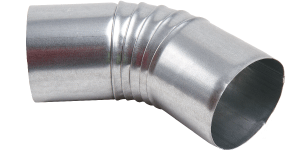

	75 mm Toes 100 mm Toes

Standard Flashings

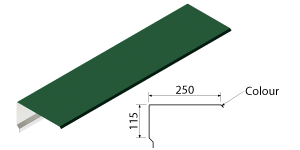

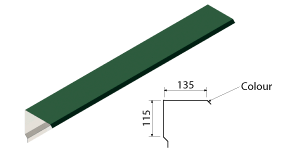

	Barge Board 250 mm x 150 mm, 3 m Length
	Barge Board 150 mm x 150 mm, 3 m Length

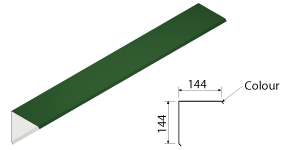

	Corner Flashing 150 mm x 150 mm, 3 m Length

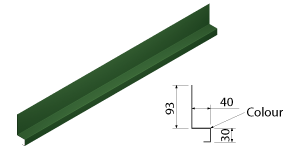

	Drip Rail 90 mm x 40 mm x 30 mm x 15 mm, 3 m Length

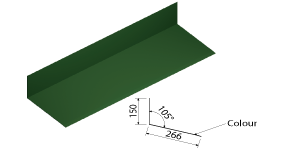

	Apron Flashing 250 mm x 150 mm, 3 m Length

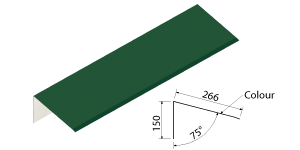

	Mono Ridge 250 mm x 150 mm, 3 m Length
	Over Door Flashing

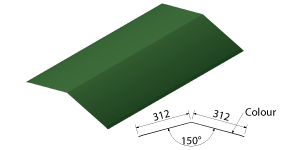

	Ridge Cap 300 mm x 300 mm
	Ridge Cap 200 mm x 200 mm

Angle Cheats

Angle Cleats
