ProTherm C30 is strong, durable and easy to install. Specifically designed to provide a cost effective, lightweight roof and wall solution for protection and insulation of many buildings

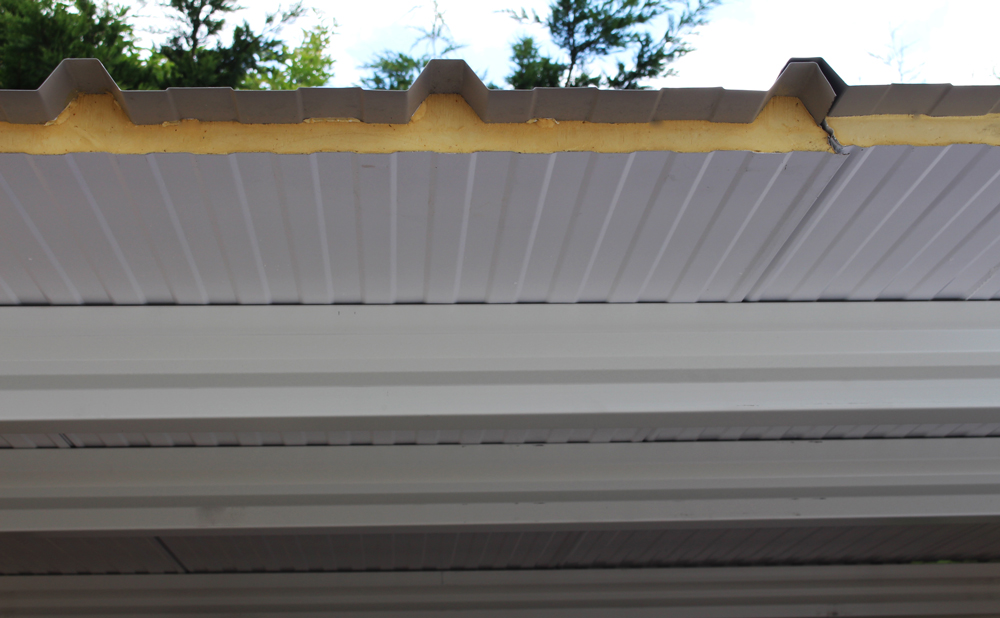

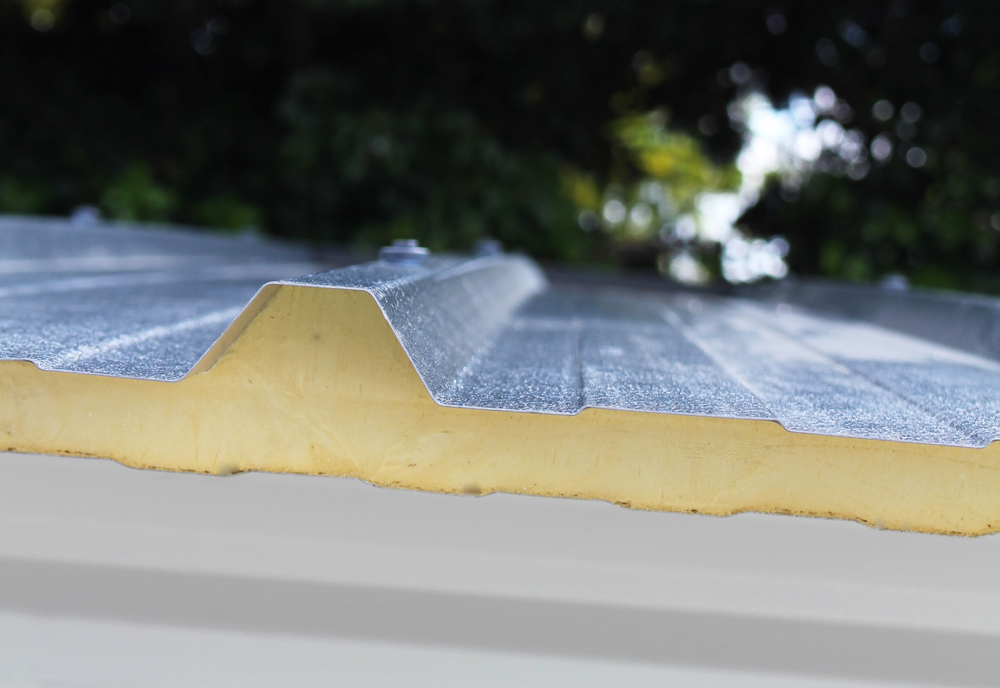

The steel faced insulated panel consists of a trapezoidal external skin with a leathergrain plastisol finish giving the weather face long term durability. The bright white steel liner finish to the internal skin offers both additional strength and a clean and reflective interior.
ProTherm C30 benefits include:
ProTherm C 30 product options:
| Stock Lengths: | 4.3m, 5.5m & 6.7m |

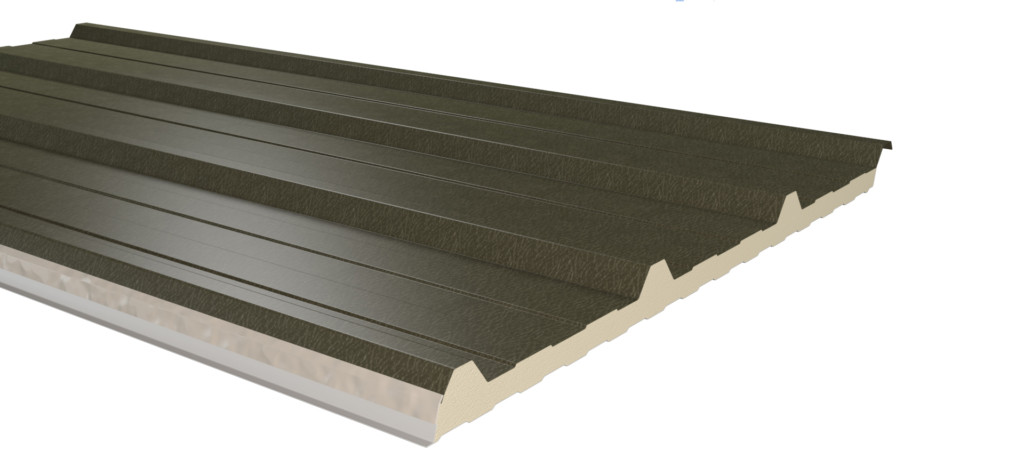

| Stock Colours: | Anthracite & Olive Green |
| Insulation cutback: | 75mm |
Colour Range:
 |
 |
| Anthracite | Olive Green |
| Note: Colours are for guidance only, we have made every effort to match the colours above, however, we cannot guarantee an exact colour match | |
ProTherm C30 Profile
Cut Back
ProTherm C30 Span/Load Tables
Safe imposed (positive) loads (kN/m2)
| Span (m) | 1.20 | 1.40 | 1.60 | 1.80 | 2.00 | 2.20 | 2.40 | 2.60 | 2.80 | 3.00 | 3.20 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Span | 2.87 | 2.32 | 1.92 | 1.62 | 1.38 | 1.19 | 0.97 | 0.76 | 0.59 | 0.47 | 0.35 |
| Double Span | 2.87 | 2.17 | 1.71 | 1.38 | 1.14 | 0.96 | 0.82 | 0.71 | 0.51 | 0.35 | 0.24 |
| Multi Span | 2.87 | 2.32 | 1.92 | 1.60 | 1.32 | 1.12 | 0.96 | 0.83 | 0.65 | 0.47 | 0.32 |
Safe wind suction (negative) loads (kN/m2)
| Span (m) | 1.20 | 1.40 | 1.60 | 1.80 | 2.00 | 2.20 | 2.40 | 2.60 | 2.80 | 3.00 | 3.20 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Span | -3.00 | -2.46 | -1.94 | -1.47 | -1.16 | -0.94 | -0.78 | -0.66 | -0.57 | -0.50 | -0.44 |
| Double Span | -2.92 | -2.23 | -1.78 | -1.47 | -1.16 | -0.94 | -0.78 | -0.66 | -0.57 | -0.50 | -0.44 |
| Multi Span | -3.00 | -2.46 | -1.94 | -1.47 | -1.16 | -0.94 | -0.78 | -0.66 | -0.57 | -0.50 | -0.44 |
Notes
The span tables have been created in accordance with BS EN 14509
The values are based on a 2.0mm minimum purlin thickness, and a maximum permitted cladding deflection of span/200 under imposed load
APPLICATION
Protherm c30 is a through fixed roof and wall sheet, which can be used for suitable building applications, where the roof slope is 8° or more and vertical only on a wall. Buildings with no heat may need to be ventilated. Protherm C30 steel faced insulated sheets are suitable to be fixed to cold rolled, hot rolled and timber purlins. However when fixing to treated timber purlins an EPDM barrier must be used to prevent any reaction between the treatment and the steel liner of the sheets.
SIDE LAP
All external side laps to be weather sealed along the full length by an unbroken bead of 6mmx5mm thick butyl rubber sealant tape.
END LAP
All external end laps to be weather sealed along the full width using two unbroken runs of 6mmx5mm thick butyl rubber sealant tape. End Laps to be tail stitched at each crown location 50mm upslope from end-lap. Please refer to End Lap Detail.
FILLERS
Where flashings are fixed across the profile of the insulated panel, EPDM faced closed cell polyethylene foam fillers should be used to seal and close the profile. Seal the top, bottom and sides of each profiled filler with non-curing gun-grade sealant.
FASTENERS
- Primary
All primary fasteners must be the high threaded type manufactured from carbon steel, anti-corrosion coated, and fitted with a 19mm diameter bonded stainless steel washer.
All fasteners to be located through every crown of the profile i.e. three fixings per panel per purlin. - Secondary
Side laps and flashings to be stitched at 450mm centres (maximum) with carbon steel stitching screws, complete with 14mm diameter bonded stainless steel washers.
All fasteners should be from an approved manufacturer
ROOFLIGHTS
Rooflights can be used as part of the Protherm C30 steel faced insulated sheet system and must be installed in strict accordance with manufacturer’s instructions.
QUALITY & DURABILITY
Protherm C30 steel faced insulated sheets are manufactured from the highest quality materials, using state of the art production equipment to rigorous quality control standards, complying with ISO9001 standard, ensuring long term reliability and service life.
DELIVERY
All deliveries (unless indicated otherwise) are by road transport to project site. Offloading is the responsibility of the client.
Duggan Profiles also have other ranges of insulated panels available to order in a verity of thicknesses, lengths and colours depending on order size. Please contact or sales team for more details on (056) 7722 485 or email profiles@steel.ie
