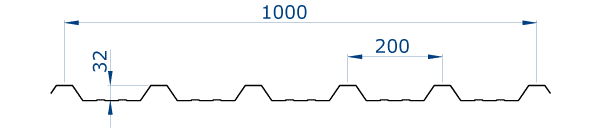

ProLight is a polycarbonate box profile clearlight in a 1.3mm thickness designed to match our 1000/32 range of profiled sheeting.
Stock Lengths available to collect in our yard in 10/3 & 14/3 Profiles
| 1000/32 x 1.3mm Prolight | 1000/32 x 1.3mm Prolight |
|---|---|
| 2.0mtr (6’6″) | 5.0mtr (16’5″) |
| 3.05mtr (10’0″) | 6.65mtr (21’10”) Upon Request |
| 3.65mtr (12’0″) | 7.50mtr (26’10”) Upon Request |
UV Protection
Proilight sheets have a UV barrier on the top surface.
Chemical Resistance
There should be no aggressive environmental conditions or chemicals where Prolight is used. Contact with solvents and alkali cleaners should be avoided.
Condensation
Condensation may form on the underside of a roof made from any thin sheeting material. To minimise condensation within an enclosed structure, sources of moisture should be minimised and good ventilation should be provided.
Safety
Prolight® is a glazing material and should therefore be always handled with due care. Never walk on Prolight sheets.
Isolation from plastisol coating
Plastisol coating on roofing sheets is aggressive to polycarbonate. It is essential that the lapped area of metal sheet at either side of and at the lower end of the Prolight has an aluminium foil adhesive tape applied to completely isolate the polycarbonate from the plastisol coated metal.
Purlin centres
Where purlin centres exceed 1800mm or are less than 1000mm guidance should be obtained from Duggan Steel
Fixing to treated timber
When fixing to treated timber purlins an EPDM barrier must be used to prevent any reaction between the treatment and the Agrilight sheets.
