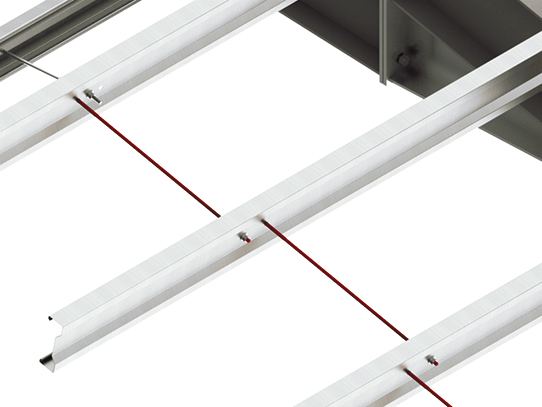

Threaded Tie Rod on roof:

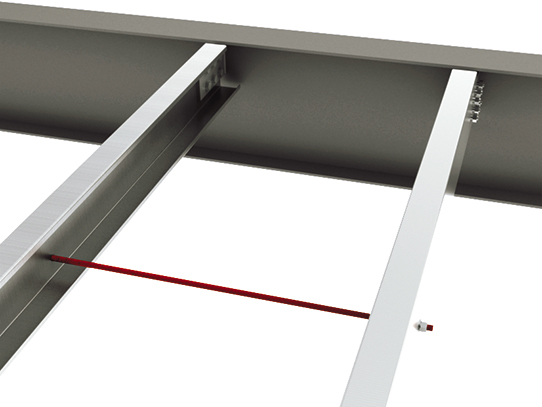

Threaded Tie Rod on floor:

General Information:

Threaded Tie Rods may be used as alternative to Tube Ties and can be used in roof, wall and floor situations. The images above show typical applications. Threaded Tie Rods are manufactured from M12 Grade 8.8 threaded bar and may be supplied in lengths up to 3m long.

How to order:

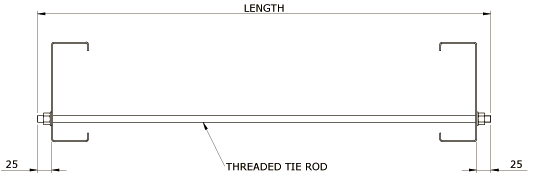

The quantity and length is required for manufacture. The length is as indicated in the diagram above, a 25mm extension is allowed beyond the face of the cold-rolled member either end.
